UltraViolet (UV) Lighting

UV Lighting is ideal to activate the flourescent object. Falcon Illumination provides more than 10 series of UV lighting with wavelength 375nm and 400nm.

Illumination Structure:
Please refer to the respective model.

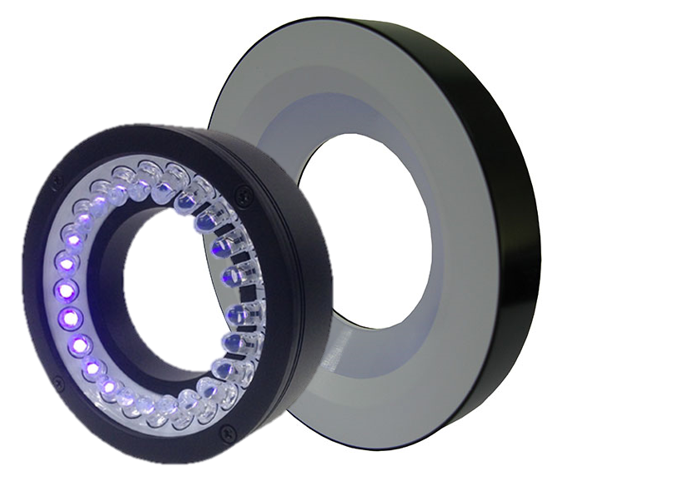

Ring Light (FLDR-A)

FLDR-i56A-UV

Model Color Volt Watt Ampere Datasheet
  FLDR-i56A-UV24-375 24 V 2.88 W 0.12 A FLDR-i56-UV
  FLDR-i56A-UV24-400 uv 24 V 2.88 W 0.12 A

FLDR-i70A-UV

Model Color Volt Watt Ampere Datasheet
  FLDR-i70A-UV24-375 24 V 3.84 W 0.16 A FLDR-i70A-UV
  FLDR-i70A-UV24-400 uv 24 V 3.84 W 0.16 A

Ring Light (FLDR-B)

FLDR-i32B-UV

Model Color Volt Watt Ampere Datasheet
  FLDR-i32B-UV uv 24 V 1.92 W 0.08 A FLDR-i32B-UV

FLDR-Si32B-UV

Model Color Volt Watt Ampere Datasheet
  FLDR-Si32B-UV12 uv 12 V 1.44 W 0.12 A FLDR-Si32B-UV

FLDR-i38B-UV

Model Color Volt Watt Ampere Datasheet
  FLDR-i38B-UV12-375 12 V 0.96 W 0.08 A FLDR-i38B-UV
  FLDR-i38B-UV12-400 uv 12 V 0.96 W 0.08 A
  FLDR-i38B-UV24-375 24 V 0.96 W 0.04 A
  FLDR-i38B-UV24-400 uv 24 V 0.96 W 0.04 A

FLDR-i50B-UV

Model Color Volt Watt Ampere Datasheet
  FLDR-i50B-UV12-375 12 V 1.44 W 0.12 A FLDR-i50B-UV
  FLDR-i50B-UV12-400 uv 12 V 1.44 W 0.12 A
  FLDR-i50B-UV24-375 24 V 1.44 W 0.06 A
  FLDR-i50B-UV24-400 uv 24 V 1.44 W 0.06 A

FLDR-i75B-UV

Model Color Volt Watt Ampere Datasheet
  FLDR-i75B-UV24-375 uv 24 V 1.92 W 0.08 A FLDR-i75B-UV

FLDR-i90B-UV

Model Color Volt Watt Ampere Datasheet
  FLDR-i90B-UV12-375 12 V 5.76 W 0.48 A FLDR-i90B-UV
  FLDR-i90B-UV12-400 uv 12 V 5.76 W 0.48 A
  FLDR-i90B-UV24-375 24 V 5.76 W 0.24 A
  FLDR-i90B-UV24-400 uv 24 V 5.76 W 0.24 A

FLDR-i100B-UV

Model Color Volt Watt Ampere Datasheet
  FLDR-i100B-UV24-375 uv 24 V 6.24 W 0.26 A FLDR-i100B-UV
  FLDR-i100B-UV24-400 uv 24 V 6.24 W 0.26 A

Low Angle Ring Light (FLDR-LA1)

FLDR-i120LA1-UV400

Model Color Volt Watt Ampere Datasheet
  FLDR-i120LA1-UV400 uv 24 V 4.32 W 0.18 A FLDR-i120LA1-UV400

Low Angle Ring Light (FLDR-LA3)

FLDR-i74LA3-UV

Model Color Volt Watt Ampere Datasheet
  FLDR-i74LA3-UV24-375 uv 24 V 4.80 W 0.20 A FLDR-i74LA3-UV
  FLDR-i74LA3-UV24-400 uv 24 V 4.80 W 0.20 A

FLDR-i100LA3-UV

Model Color Volt Watt Ampere Datasheet
  FLDR-i100LA3-UV12-375 12 V 7.20 W 0.60 A FLDR-i100LA3-UV
  FLDR-i100LA3-UV12-400 uv 12 V 7.20 W 0.60 A
  FLDR-i100LA3-UV24-375 24 V 7.20 W 0.30 A
  FLDR-i100LA3-UV24-400 uv 24 V 7.20 W 0.30 A

FLDR-i132LA3-UV

Model Color Volt Watt Ampere Datasheet
  FLDR-i132LA3-UV24-375 uv 24 V 8.16 W 0.34 A FLDR-i100B-UV
  FLDR-i132LA3-UV24-400 uv 24 V 8.16 W 0.34 A

FLDR-i170LA3-UV

Model Color Volt Watt Ampere Datasheet
  FLDR-i170LA3-UV24-375 uv 24 V 12.00 W 0.50 A FLDR-i100B-UV
  FLDR-i170LA3-UV24-400 uv 24 V 12.00 W 0.50 A

Diffused Front Light (FLKR)

FLKR-Si100-UV

Model Color Volt Watt Ampere Datasheet
  FLKR-Si100-UV24 uv 24 V 7.68 W 0.32 A FLKR-Si100-UV

High Brightness Back Light (FLDL-TP)

FLDL-TP-Si27-UV

Model Color Volt Watt Ampere Datasheet
  FLDL-TP-Si27-UV24 24 V 1.92 W 0.08 A FLDL-TP-Si27-UV

Coaxial Light (FLFV)

FLFV-Si50-UV

Model Color Volt Watt Ampere Datasheet
  FLFV-Si50-UV24 24 V 7.20 W 0.30 A FLFV-Si50-UV

FLFV-Si70N-UV

Model Color Volt Watt Ampere Datasheet
  FLFV-Si70N-UV24 24 V 9.60 W 0.40 A FLFV-Si70N-UV

Bar Light (FLDL)

FLDL-i24x15-UV

Model Color Volt Watt Ampere Datasheet
  FLDL-i24x15-UV12-375 12 V 0.48 W 0.04 A FLDL-i24x15
  FLDL-i24x15-UV12-400 uv 12 V 0.48 W 0.04 A
  FLDL-i24x15-UV24-375 24 V 0.48 W 0.02 A
  FLDL-i24x15-UV24-400 uv 24 V 0.48 W 0.02 A

FLDL-i44x15-UV

Model Color Volt Watt Ampere Datasheet
  FLDL-i44x15-UV12-375 12 V 0.96 W 0.08 A FLDL-i44x15
  FLDL-i44x15-UV12-400 uv 12 V 0.96 W 0.08 A
  FLDL-i44x15-UV24-375 24 V 0.96 W 0.04 A
  FLDL-i44x15-UV24-400 uv 24 V 0.96 W 0.04 A

FLDL-i56x15-UV

Model Color Volt Watt Ampere Datasheet
  FLDL-i56x15-UV12-375 12 V 1.44 W 0.12 A FLDL-i56x15
  FLDL-i56x15-UV12-400 uv 12 V 1.44 W 0.12 A
  FLDL-i56x15-UV24-375 24 V 1.44 W 0.06 A
  FLDL-i56x15-UV24-400 uv 24 V 1.44 W 0.06 A

FLDL-i86x15-UV

Model Color Volt Watt Ampere Datasheet
  FLDL-i86x15-UV12-375 12 V 1.92 W 0.16 A FLDL-i86x15
  FLDL-i86x15-UV12-400 uv 12 V 1.92 W 0.16 A
  FLDL-i86x15-UV24-375 24 V 1.92 W 0.08 A
  FLDL-i86x15-UV24-400 uv 24 V 1.92 W 0.08 A

FLDL-i120x15-UV

Model Color Volt Watt Ampere Datasheet
  FLDL-i120x15-UV12-375 12 V 2.88 W 0.24 A FLDL-i120x15
  FLDL-i120x15-UV12-400 uv 12 V 2.88 W 0.24 A
  FLDL-i120x15-UV24-375 24 V 2.88 W 0.12 A
  FLDL-i120x15-UV24-400 uv 24 V 2.88 W 0.12 A

FLDL-i150x15-UV

Model Color Volt Watt Ampere Datasheet
  FLDL-i150x15-UV12-375 12 V 3.36 W 0.28 A FLDL-i150x15
  FLDL-i150x15-UV12-400 uv 12 V 3.36 W 0.28 A
  FLDL-i150x15-UV24-375 24 V 3.36 W 0.14 A
  FLDL-i150x15-UV24-400 uv 24 V 3.36 W 0.14 A

FLDL-i180x15-UV

Model Color Volt Watt Ampere Datasheet
  FLDL-i180x15-UV12-375 12 V 4.32 W 0.36 A FLDL-i180x15
  FLDL-i180x15-UV12-400 uv 12 V 4.32 W 0.36 A
  FLDL-i180x15-UV24-375 24 V 4.32 W 0.18 A
  FLDL-i180x15-UV24-400 uv 24 V 4.32 W 0.18 A

FLDL-i300x15-UV

Model Color Volt Watt Ampere Datasheet
  FLDL-i300x15-UV12-400 uv 12 V 7.20 W 0.60 A FLDL-i300x15
  FLDL-i300x15-UV24-375 24 V 7.20 W 0.30 A
  FLDL-i300x15-UV24-400 uv 24 V 7.20 W 0.30 A

FLDL-i120x40-UV

Model Color Volt Watt Ampere Datasheet
  FLDL-i120x40-UV12-375 12 V 8.64 W 0.72 A FLDL-i12040
  FLDL-i120x40-UV12-400 uv 12 V 8.64 W 0.72 A
  FLDL-i120x40-UV24-375 24 V 8.64 W 0.36 A
  FLDL-i120x40-UV24-400 uv 24 V 8.64 W 0.36 A

Spot Light (FHLV)

FHLV-Si27N2-UV

Model Color Volt Watt Ampere Datasheet
  FHLV-Si27N2 uv 12 V 6.00 W 0.50 A FHLV-Si27N2
  FHLV-Si27N2 uv 12 V 4.80 W 0.40 A FHLV-Si27N2

Line Light (FLLN)

FLLN-Si400-UV

Model Color Volt Watt Ampere Datasheet
  FLLN-Si400-UV24 uv 24 V 7.20 W 0.30 A FLLN-Si400-UV

High Power Spot Light (FHSP)

FHSP-Si60-UV

Model Color Volt Watt Ampere Datasheet
  FHSP-Si60-UV24 uv 24 V 16.80 W 0.70 A FHSP-Si60-UV

High Power Dome Light (FHDM)

FHDM-Si100-UV

Model Color Volt Watt Ampere Datasheet
  FHDM-Si100-UV22 uv 22 V 44.00 W 2.00 A FHDM-Si100-UV
