With analog control input

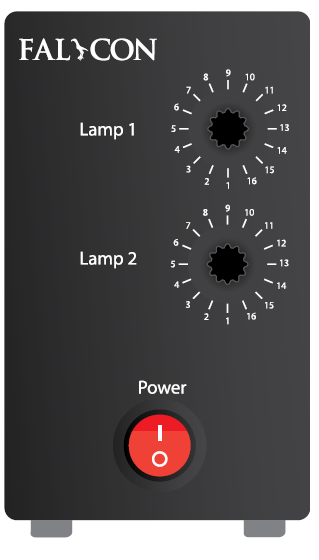

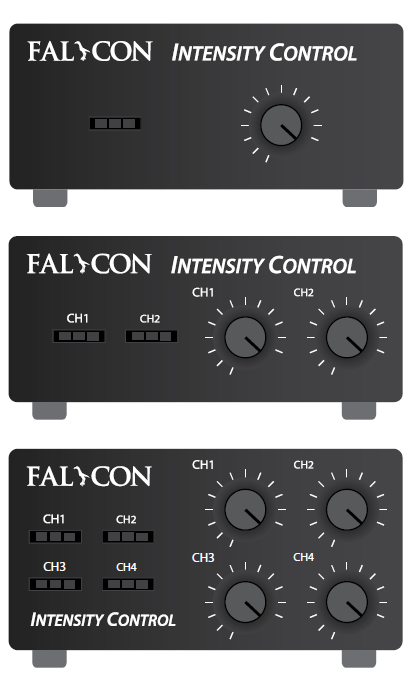

The power supplies for the PSA series are the simplest version for controlling FALCON lights. The PSA is connected to the 230 V grid with a Schuko connector on the rear. Depending on the version, the front side has up to 4 outputs with adjustable intensity, equipped with the standard FALCON JST connector. The control is implemented as a120 kHz pulse width modulation, which guarantees flicker-free camera images.



Model Output Voltage (V) Total Output Power (W) Quantity of Output Channels
1 Output
PSA-1-12/25W 12 25 1
PSA-1-24/25W 24 25 1
PSA-1-48/60W 42 60 1
2 / 4 outputs (also in 12/24V combination)
PSA-2-12/24/25W 12/24 25 2
PSA-2-12/24/60W 12/24 60 2
PSA-2-24/25W 24 25 2
PSA-2-24/60W 24 60 2
PSA-2-24/100W 24 100 2
PSA-4-24/ 100W 24 100 4



With digital and analog control input

The power supply for the PSD series is an upgrade of the PSA series. In addition to intensity control with 120 kHz pulse width modulation, the PSD series also has the ability to communicate with other devices through an RS-232 interface to implement software-based controls. PSD series can also process trigger signals to synchronize lights with a camera, or can even be overdriven as a strobe unit light synchronous with the camera. Ideal for use in test labs.



Model Output Voltage (V) Total Output Power (W) Quantity of Output Channels
Standard
PSD-1256-12V/25W 12 25 1
PSD-1256-24V / 25W 24 25 1
PSD-1256-24V / 60W 24 60 1
PSD-2016-12V / 25W 12 25 2
PSD-2016-24/25W 24 25 2
PSD-2016-24V/60W 24 60 2
PSD-4256N-24V/25W 24 25 4
Strobe-Unit
PSD-2016S-48V/60W 48 60 2
PSD-1256S-48V/60W 48 60 2
