Product Description:

The light from FLKR illuminates around the periphery of the light diffusion plate which scatters and reflects within the plate to create diffused light, which illuminates from directly overhead. The slightly angled illumination allows more focus on the workpiece and eliminates glare effectively. This light is equipped with diffusion plate by default.

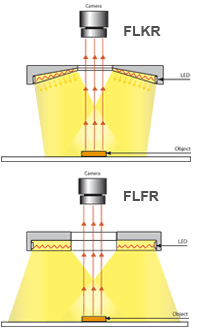

Illumination Structure:
Light from the LEDs around the periphery of the light diffusion plate is scattered and reflected within the plate to create diffuse light that illuminates from directly overhead.






Major Applications:

The FLKR allows coating inspection and burr inspection of the molding, soldering inspection, inspection on shiny materials, detecting grooves on the interior part of an object and circuit boards inspections. The small height of this series is ideal for installation in limited space.


Additional Information:

- Aluminium or stainless steel housing.
- JST, M8 or M12 connectors.






FLKR-Si70

Model Color Volt Watt Ampere Datasheet
  FLKR-Si70-R 12 V 4.80 W 0.40 A FLKR-Si70
  FLKR-Si70-R24 24 V 4.80 W 0.20 A
  FLKR-Si70-G/B/W G B W 24 V 3.36 W 0.14 A
  FLKR-Si70-IR 12 V 2.10 W 0.18 A
  FLKR-Si70-IR24 24 V 2.40 W 0.10 A

FLKR-Si85

Model Color Volt Watt Ampere Datasheet
  FLKR-Si85-R 12 V 6.72 W 0.56 A FLKR-Si85
  FLKR-Si85-R24 24 V 6.72 W 0.28 A
  FLKR-Si85-G12/B12/W12 G B W 12 V 5.52 W 0.46 A
  FLKR-Si85-G/B/W G B W 24 V 4.80 W 0.20 A
  FLKR-Si85-IR 12 V 3.00 W 0.25 A
  FLKR-Si85-IR24 24 V 3.00 W 0.13 A

FLKR-Si100

Model Color Volt Watt Ampere Datasheet
  FLKR-Si100-R 12 V 9.60 W 0.80 A FLKR-Si100
  FLKR-Si100-R24 24 V 9.6 W 0.40 A
  FLKR-Si100-G/B/W G B W 24 V 6.72 W 0.28 A
  FLKR-Si100-IR 12 V 4.20 W 0.35 A
  FLKR-Si100-IR24 24 V 4.20 W 0.18 A

FLKR-Si100-270

Model Color Volt Watt Ampere Datasheet
  FLKR-Si100-R-270 R 12 V 8.64 W 0.72 A FLKR-Si100-270
  FLKR-Si100-R24-270 R24 24 V 6.72 W 0.28 A
  FLKR-Si100-G/BW-270 G B W 24 V 4.80 W 0.20 A
  FLKR-Si100-IR-270 ir 12 V 3.00 W 0.25 A
