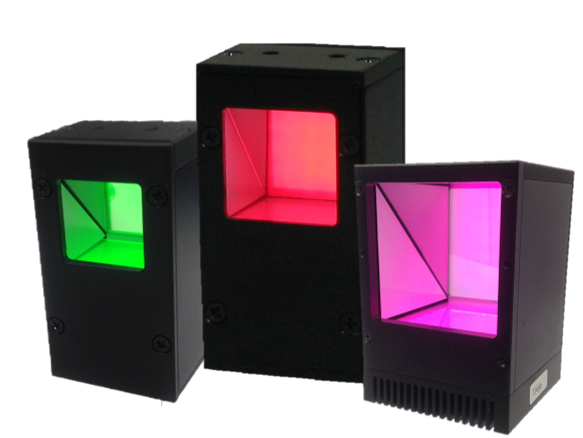

Product Description:

The coaxial light is a uniform light that runs perpendicular with camera axis across the entire field-of-view makes on-axis illumination system. The light illuminates from the coaxial side of a lens via a partial mirror. The LEDs illuminates on the mirror oriented at 45 and creates a reflection of the object. High power models FHFV is available for high light applications. The FCAX series features high tolerance against mechanical loads and produces an even more homogenous and higher output light.


Illumination Structure:
A half mirror aligns the high-intensity, even light from the LED array to the same optical axis as the lens.



Major Applications:

- Suitable to apply on flat object surface with specular or mirror surface.
- Wafer level or dice positioning guiding, or pick and place process applications.
- Alignment mark on the board.
- Inspection for cosmetic applications, scratches on object, dented or micro slug.


Additional Information:

- Aluminium or stainless steel housing.
- JST connector as standard (M8, M12 available).





FLFV-i15

Model Color Volt Watt Ampere Datasheet
  FLFV-i15-SR24 24 V 0.72 W 0.03 A
  FLFV-i15-G/B/W 24 V 0.96 W 0.04 A
  FLFV-i15-IR 12 V 0.60 W 0.05 A
  FLFV-i15-IR24 24 V 0.60 W 0.03 A

FLFV-i18

Model Color Volt Watt Ampere Datasheet
  FLFV-i18-SR 12 V 0.96 W 0.08 A
  FLFV-i18-SR24 24 V 1.44 W 0.06 A
  FLFV-i18-G/B/W 24 V 1.92 W 0.08 A

FLFV-Si18

Model Color Volt Watt Ampere Datasheet
  FLFV-Si18-R 12 V 1.44 W 0.12 A FLFV-Si18
  FLFV-Si18-G/B/W 24 V 1.44 W 0.06 A
  FLFV-Si18-IR 12 V 0.60 W 0.05 A

FLFV-Si20L

Model Color Volt Watt Ampere Datasheet
  FLFV-Si20L-R24 24 V 0.96 W 0.04 A FLFV-Si20L
  FLFV-Si20L-G/B/W 24 V 0.96 W 0.04 A

FLFV-Si20N

Model Color Volt Watt Ampere Datasheet
  FLFV-Si20N-R 12 V 0.96 W 0.08 A FLFV-Si20N
  FLFV-Si20N-R24 24 V 0.96 W 0.04 A
  FLFV-Si20N-G/B/W 24 V 0.96 W 0.04 A
  FLFV-Si20N-IR24 24 V 0.60 W 0.03 A

FLFV-i25

Model Color Volt Watt Ampere Datasheet
  FLFV-i25-SR24 24 V 2.16 W 0.09 A FLFV-i25
  FLFV-i25-G/B/W 24 V 1.92 W 0.08 A
  FLFV-i25-IR 12 V 1.20 W 0.10 A
  FLFV-i25-IR24 24 V 1.20 W 0.05 A

FLFV-i25N

Model Color Volt Watt Ampere Datasheet
  FLFV-i25N-SR24 sr24 24 V 2.16 W 0.09 A FLFV-i25N

FLFV-Si25

Model Color Volt Watt Ampere Datasheet
  FLFV-Si25-R 12 V 2.88 W 0.24 A FLFV-Si25
  FLFV-Si25-R24 24 V 1.92 W 0.08 A
  FLFV-Si25-G/B/W 24 V 2.88 W 0.12 A
  FLFV-Si25-IR 12 V 1.20 W 0,10 A
  FLFV-Si25-IR24 24 V 1.20 W 0.05 A

FLFV-Si25N

Model Color Volt Watt Ampere Datasheet
  FLFV-Si25N-R 12 V 1.92 W 0.16 A FLFV-Si25N
  FLFV-Si25N-R24 24 V 1.92 W 0.08 A
  FLFV-Si25N-G12/B12/W12 12 V 2.16 W 0.18 A
  FLFV-Si25N-G/B/W 24 V 2.16 W 0.09 A
  FLFV-Si25-IR 12 V 0.90 W 0.08 A

FLFV-Si34

Model Color Volt Watt Ampere Datasheet
  FLFV-Si34-G/B/W 24 V 3.60 W 0.15 A FLFV-Si34
  FLFV-Si34-IR 12 V 1.50 W 0.13 A

FLFV-Si35N

Model Color Volt Watt Ampere Datasheet
  FLFV-Si35N-R24 24 V 3.84 W 0.16 A FLFV-Si35N
  FLFV-Si35N-G/B/W 24 V 4.32 W 0.18 A
  FLFV-Si35N-IR 24 V 1.80 W 0.15 A

FLFV-i50

Model Color Volt Watt Ampere Datasheet
  FLFV-i50-SR24 SR24 24 V 6.48 W 0.27 A FLFV-i50
  FLFV-i50-G/B/W 24 V 6.24 W 0.26 A
  FLFV-i50-IR 12 V 3.90 W 0.33 A

FLDL-i30x10

Model Color Volt Watt Ampere Datasheet
  FLFV-Si50-R 12 V 8.64 W 0.72 A FLFV-Si50
  FLFV-Si50-R24 24 V 8.64 W 0.36 A
  FLFV-Si50-G12/B12/W12 12 V 7.20 W 0.60 A
  FLFV-Si50-G/B/W 24 V 6.48 W 0.27 A
  FLFV-Si50-IR 12 V 2.70 W 0.23 A
  FLFV-Si50-IR24 24 V 3.60 W 0.15 A

FLFV-Si50x20

Model Color Volt Watt Ampere Datasheet
  FLFV-Si50x20-R24 24 V 2.88 W 0.12 A FLFV-Si50x20
  FLFV-Si50x20-G/B/W 24 V 1.92 W 0.08 A
  FLFV-Si50x20-IR24 24 V 1.20 W 0.05 A

FLFV-Si50N

Model Color Volt Watt Ampere Datasheet
  FLFV-Si50N-R 12 V 8.64 W 0.72 A FLFV-Si50N
  FLFV-Si50N-R24 24 V 8.64 W 0.36 A
  FLFV-Si50N-G/B/W 24 V 6.48 W 0.27 A

FLFV-Si70N

Model Color Volt Watt Ampere Datasheet
  FLFV-Si70N-R 12 V 10.56 W 0.88 A FLFV-Si70N
  FLFV-Si70N-R24 24 V 10.56 W 0.44 A
  FLFV-Si70N-G/B/W 24 V 10.20 W 0.43 A
  FLFV-Si70N-IR 12 V 5.10 W 0.43 A

FLFV-Si100

Model Color Volt Watt Ampere Datasheet
  FLFV-Si100-R24 24 V 23.04 W 0.96 A FLFV-Si100
  FLFV-Si100-G/B/W 24 V 19.20 W 0.80 A
  FLFV-Si100-RGB 24 V 31.20 W 1.30 A

FLFV-i140

Model Color Volt Watt Ampere Datasheet
  FLFV-i140-R24 24 V 15.60 W 0.65 A FLFV-i140

FLFV-i150

Model Color Volt Watt Ampere Datasheet
  FLFV-i150-B/W 24 V 33.60 W 1.40 A FLFV-i150
  FLFV-i150-G 24 V 20.16 W 0.84 A

FLFV-i200

Model Color Volt Watt Ampere Datasheet
  FLFV-i200-B/W 24 V 55.20 W 2.30 A FLFV-i200
  FLFV-i200-G 24 V 33.12 W 1.38 A
