Product Description:

Ring-shaped light with overhead diffused light eliminates LED glares and shadows for highly even illumination on shiny surfaces. The FLFR is best for preventing halo effect and suitable for specular surface inspection. Rectangular shaped model (FLFQ) of the same properties is also available.

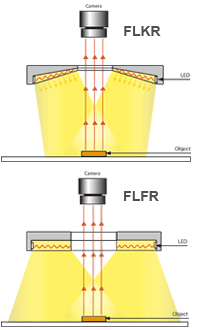

Illumination Structure:
Light from the LEDs around the periphery of the flat light diffusion plate is scattered and reflected within the plate to create diffused light that illuminates from directly overhead. This light is equipped with diffuser by default.



Major Applications:

The FLFR allows coating inspection and burr inspection of the molding, soldering inspection, inspection on shiny materials, detecting grooves on the interior part of an object and circuit boards inspections.


Additional Information:

- Aluminium or stainless steel housing.
- JST, M8, M12 connectors.



FLFR-Si70

Model Color Volt Watt Ampere Datasheet
  FLFR-Si70-R 12 V 5.76 W 0.48 A FLFR-Si70
  FLFR-Si70-R24 24 V 5.76 W 0.24 A
  FLFR-Si70-G/B/W G B W 24 V 3.84 W 0,16 A
  FLFR-Si70-IR 12 V 2.40 W 0.20 A
  FLFR-Si70-IR24 24 V 2.40 W 0.10 A

FLFR-Si100

Model Color Volt Watt Ampere Datasheet
  FLFR-Si100-R 12 V 7.68 W 0.64 A FLFR-Si100
  FLFR-Si100-R24 24 V 7.68 W 0.32 A
  FLFR-Si100-G/B/W GB W 24 V 5.28 W 0.22 A
  FLFR-Si100-IR 12 V 3.30 W 0.28 A
  FLFR-Si100-IR24 24 V 3.00 W 0.13 A

FLFR-Si200

Model Color Volt Watt Ampere Datasheet
  FLFR-Si200-R24 24 V 15.36 W 0.64 A FLFR-Si200
  FLFR-Si200-G/B/W G B W 24 V 11.52 W 0.48 A
  FLFR-Si200-IR 12 V 7.20 W 0.60 A
  FLFR-Si200-IR24 24 V 7.20 W 0.30 A

FLFR-Si250

Model Color Volt Watt Ampere Datasheet
  FLFR-Si250-R24 24 V 26.88 W 1.12 A FLFR-Si250
  FLFR-Si250-G/B/W GBW 24 V 19.20 W 0.80 A
  FLFR-Si200-IR 12 V 12.00 W 1.00 A

FLFR-Si350

Model Color Volt Watt Ampere Datasheet
  FLFR-Si350-R24 24 V 34.56 W 1.44 A FLFR-Si350
  FLFR-Si350-G/B/W GBW 24 V 24 W 1.00 A
  FLFR-Si350-IR 12 V 15 W 1.25 A
