Product Description:

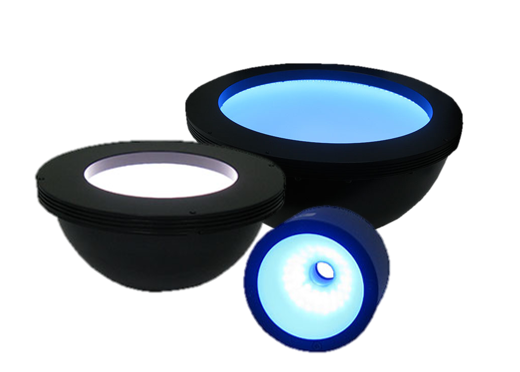

Light emitting area covers 180 degrees. This very bright diffused light enables shadowfree uniform light, perfectly suited for glossy or non-flat surface inspection. The small FLDM-i50 is cylindrical, and the others are dome-shaped. Dome lights are ideal for short working distances (0-30mm) to the workpiece. High power and UV versions are available for related applications. Rectangular shaped lights (FFDQ), half-dome and segmented models of the same features are available.


Illumination Structure:
FLDM-i50 - Light transmit through diffuser plate to provide a very uniform diffused light.

Others FLDM models - Equipped with LEDs to provide 180 degrees uniformity and larger coverage on the object area.






Major Applications:

- Suitable for in tape and reel mark or orientation inspection or objects with glossy surfaces or non-flat surface.
- Suitable for characters inspection of workpieces with glossy surface and illuminating dome-shaped surface.


Additional Information:

- Aluminium or stainless steel housing.
- JST, M8 or M12 connectors.






FLDM-i50

Model Color Volt Watt Ampere Datasheet
  FLDM-i50-SR 12 V 5.04 W 0.42 A FLDM-i50
  FLDM-i50-SR24 24 V 5.04 W 0.21 A
  FLDM-i50-G/B/W 24 V 4.80 W 0.20 A
  FLDM-i50-IR 12 V 3.00 W 0.25 A

FLDM-i100

Model Color Volt Watt Ampere Datasheet
  FLDM-i100-R24 R24 24 V 3.60 W 0.15 A FLDM-i100
  FLDM-i100-B/W 24 V 4.80 W 0.20 A
  FLDM-i100-G 24 V 2.88 W 0.12 A
  FLDM-i100-IR24 24 V 5.40 W 0.23 A

FLDM-Si100

Model Color Volt Watt Ampere Datasheet
  FLDM-Si100-R 12 V 5.76 W 0.48 A FLDM-Si100
  FLDM-Si100-R24 24 V 5.76 W 0.24 A
  FLDM-Si100-IR24 12 V 3.60 W 0.15 A
  FLDM-Si100-RGB 24 V 7.68 W 0.32 A FLDM-Si100-RGB

FLDM-i120

Model Color Volt Watt Ampere Datasheet
  FLDM-i120-W 24 V 6.00 W 0.23 A

FLDM-i150

Model Color Volt Watt Ampere Datasheet
  FLDM-i150-R24 24 V 4.80 W 0.20 A FLDM-i150
  FLDM-i150-B/W 24 V 7.20 W 0.30 A
  FLDM-i150-G 24 V 4.32 W 0.18 A
  FLDM-i150-IR24 24 V 7.20 W 0.30 A

FLDM-i200

Model Color Volt Watt Ampere Datasheet
  FLDM-i200-R24 24 V 7.20 W 0.30 A FLDM-i200
  FLDM-i200-B/W 24 V 9.60 W 0.40 A
  FLDM-i200-G 24 V 5.76 W 0.24 A

FLDM-i250

Model Color Volt Watt Ampere Datasheet
  FLDM-i250-R24 24 V 8.40 W 0.35 A FLDM-i250
  FLDM-i250-B/W 24 V 12.00 W 0.50 A
  FLDM-i250-G 24 V 7.20 W 0.30 A

FLDM-i280

Model Color Volt Watt Ampere Datasheet
  FLDM-i280-W 24 V 25.20 W 1.02 A FLDM-i280

FLDM-i100-4

Model Color Volt Watt Ampere Datasheet
  FLDM-i100-4-B/W 24 V 4.80 W 0.20 A FLDM-i100-4
  FLDM-i100-4-G 24 V 2.88 W 0.12 A

FLDM-i150-4

Model Color Volt Watt Ampere Datasheet
  FLDM-i150-4-B/W 24 V 4.80 W 0.20 A FLDM-i150-4
  FLDM-i150-4-G 24 V 2.88 W 0.12 A

FLDM-i250-8

Model Color Volt Watt Ampere Datasheet
  FLDM-i250-8-W 24 V 9.60 W 0.40 A FLDM-i250-8
