Product Description:

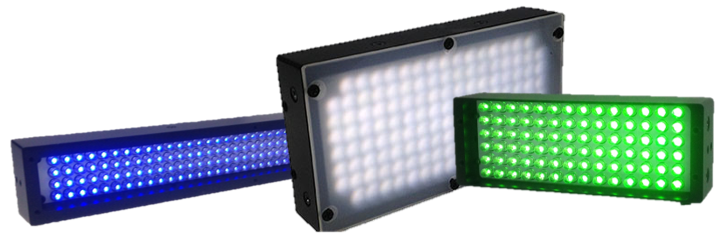

Bar-shaped lighting using high intensity LEDs mounted on a flat board. The FLDL features high-density arrays using high-intensity LEDs to create optimum oblique lighting conditions. Reflections can be controlled by a default diffusion plate (excluding UV). Usable as high intensity surface lighting.


Illumination Structure:
LEDs are arranged at a high-density on a single flat circuit board and the object can be illuminated from any angle desired. Suitable mounting brackets (15 mm width) are available.








Major Applications:

- Crack/exterior inspection of molding.
- Trimming/ forming inspection of IC lead.
- Exterior inspection of connector.
- Character inspection of chip part.


Additional Information:

- Aluminium or stainless steel housing.
- JST connector as standard (M8 or M12 available).
- IP 30 as standard, higher IPs are available as requested.






FLDL-i30x10

Model Color Volt Watt Ampere Datasheet
  FLDL-i30x10-SR 12 V 0.48 W 0.04 A
  FLDL-i30x10-SR24 24 V 0.48 W 0.02 A
  FLDL-i30x10-G/B/W 24 V 0.96 W 0.04 A
  FLDL-i30x10-IR 12 V 0.60 W 0.05 A
  FLDL-i30x10-IR24 24 V 0.60 W 0.03 A

FLDL-i24x15

Model Color Volt Watt Ampere Datasheet
  FLDL-i24x15-SR 12 V 0.72 W 0.06 A
  FLDL-i24x15-SR24 24 V 0.48 W 0.02 A
  FLDL-i24x15-G/B/W 24 V 0.96 W 0.04 A
  FLDL-i24x15-IR 12 V 0.60 W 0.05 A
  FLDL-i24x15-IR24 24 V 0.60 W 0.03 A

FLDL-i44x15

Model Color Volt Watt Ampere Datasheet
  FLDL-i44x15-SR 12 V 1.20 W 0.10 A FLDL-i44x15
  FLDL-i44x15-SR24 24 V 2.16 W 0.09 A
  FLDL-i44x15-G12/B12/W12 12 V 2.40 W 0.20 A
  FLDL-i44x15-G/B/W 24 V 2.40 W 0.10 A
  FLDL-i44x15-IR24 24 V 1.20 W 0.05 A

FLDL-i56x15

Model Color Volt Watt Ampere Datasheet
  FLDL-i56x15-SR 12 V 1.44 W 0.12 A FLDL-i56x15
  FLDL-i56x15-SR24 24 V 2.88 W 0.12 A
  FLDL-i56x15-G/B/W 24 V 2.88 W 0.12 A
  FLDL-i56x15-IR24 24 V 1.20 W 0.05 A

FLDL-i56x15N

Model Color Volt Watt Ampere Datasheet
  FLDL-i56x15N-G-P4 24 V 0.72 W 0.03 A FLDL-i56x15N

FLDL-i86x15

Model Color Volt Watt Ampere Datasheet
  FLDL-i86x15-SR 12 V 3.24 W 0.27 A FLDL-i86x15
  FLDL-i86x15-SR24 24 V 3.60 W 0.15 A
  FLDL-i86x15-G/B/W 24 V 4.32 W 0.18 A
  FLDL-i86x15-IR 12 V 2.70 W 0.23 A
  FLDL-i86x15-IR24 24 V 2.40 W 0.10 A

FLDL-i90x15

Model Color Volt Watt Ampere Datasheet
  FLDL-i90x15-SR24 24 V 2.16 W 0.09 A FLDL-i90x15
  FLDL-i90x15-G/B/W 24 V 1.92 W 0.08 A

FLDL-i120x15

Model Color Volt Watt Ampere Datasheet
  FLDL-i120x15-SR 12 V 3.36 W 0.28 A FLDL-i120x15
  FLDL-i120x15-SR24 24 V 5.04 W 0.21 A
  FLDL-i120x15-G12/B12/W12 12 V 6.72 W 0.56 A
  FLDL-i120x15-G/B/W 24 V 5.76 W 0.24 A
  FLDL-i120x15-IR 12 V 3.60 W 0.30 A
  FLDL-i120x15-IR24 24 V 3.60 W 0.15 A

FLDL-i130x15

Model Color Volt Watt Ampere Datasheet
  FLDL-i130x15-SR 12 V 3.36 W 0.28 A FLDL-i130X15
  FLDL-i130x15-SR24 R24 24 V 3.36 W 0.14 A
  FLDL-i130x15-G12/B12/W12 12 V 6.72 W 0.56 A
  FLDL-i130x15-G/B/W 24 V 5.76 W 0.24 A
  FLDL-i130x15-IR 12 V 3.60 W 0.30 A
  FLDL-i130x15-IR24 24 V 3.60 W 0.15 A

FLDL-L-i130x15

Model Color Volt Watt Ampere Datasheet
  FLDL-L-i130x15-SR 12 V 3.36 W 0.28 A FLDL-L-i130X15
  FLDL-L-i130x15-SR24 R24 24 V 3.36 W 0.14 A
  FLDL-L-i130x15-G12/B12/W12 12 V 6.72 W 0.56 A
  FLDL-L-i130x15-G/B/W 24 V 5.76 W 0.24 A
  FLDL-L-i130x15-IR 12 V 3.60 W 0.30 A
  FLDL-L-i130x15-IR24 24 V 3.60 W 0.15 A

FLDL-i150x15

Model Color Volt Watt Ampere Datasheet
  FLDL-i150x15-SR 12 V 6.48 W 0.54 A FLDL-i150X15
  FLDL-i150x15-SR24 24 V 6.48 W 0.24 A
  FLDL-i150x15-G/B/W 24 V 6.24 W 0.26 A
  FLDL-i150x15-IR24 24 V 3.60 W 0.15 A

FLDL-i180x15

Model Color Volt Watt Ampere Datasheet
  FLDL-i180x15-SR 12 V 8.64 W 0.72 A FLDL-i180x15
  FLDL-i180x15-SR24 R24 24 V 8.64 W 0.36 A
  FLDL-i180x15-G/B/W 24 V 7.20 W 0.30 A
  FLDL-i180x15-IR 12 V 4.50 W 0.38 A
  FLDL-i180x15-IR24 24 V 4.20 W 0.18 A

FLDL-i200x15

Model Color Volt Watt Ampere Datasheet
  FLDL-i200x15-SR24 24 V 8.64 W 0.36 A FLDL-i200X15
  FLDL-i200x15-G/B/W 24 V 8.64 W 0.36 A
  FLDL-i200x15-G5/B5/W5 24 V 5.76 W 0.24 A
  FLDL-i200x15-IR 12 V 5.40 W 0.45 A

FLDL-i300x15

Model Color Volt Watt Ampere Datasheet
  FLDL-i300x15-SR 12 V 7.20 W 0.60 A FLDL-i300x15
  FLDL-i300x15-SR24 R24 24 V 12.96 W 0.54 A
  FLDL-i300x15-G/B/W 24 V 12.96 W 0.54 A
  FLDL-i300x15-IR 12 V 8.10 W 0.68 A
  FLDL-i300x15-IR24 24 V 7.20 W 0.30 A

FLDL-i300x15-15V&20V

Model Color Volt Watt Ampere Datasheet
  FLDL-i300x15-G/B/W-15 15 V 8.10 W 0.54 A FLDL-i300X15
  FLDL-i300x15-G/B/W-20 20 V 10.80 W 0.54 A

FLDL-i400x15

Model Color Volt Watt Ampere Datasheet
  FLDL-i400x15-SR 12 V 9.60 W 0.80 A FLDL-i400x15
  FLDL-i400x15-SR24 R24 24 V 9.60 W 0.40 A
  FLDL-i400x15-G/B/W 24 V 15.84 W 0.66 A

FLDL-i300x20

Model Color Volt Watt Ampere Datasheet
  FLDL-i300x20-SR 12 V 9.60 W 0.80 A FLDL-i300x20
  FLDL-i300x20-SR24 R24 24 V 9.60 W 0.40 A
  FLDL-i300x20-G/B/W 24 V 17.28 W 0.72 A
  FLDL-i300x20-IR 12 V 10.80 W 0.90 A

FLDL-i300x24

Model Color Volt Watt Ampere Datasheet
  FLDL-i300x24-SR24 24 V 21.60 W 0.90 A FLDL-i300x24
  FLDL-i300x24-G/B/W 24 V 24.00 W 1.00 A
  FLDL-i300x24-IR 12 V 15.00 W 1.25 A

FLDL-i220x25

Model Color Volt Watt Ampere Datasheet
  FLDL-i220x25-SR24 SR24 24 V 15.84 W 0.66 A FLDL-i300x24
  FLDL-i220x25-G/B/W 24 V 16.80 W 0.70 A
  FLDL-i220x25-IR 12 V 10.50 W 0.88 A
  FLDL-i220x25-IR24 24 V 9.00 W 0.38 A

FLDL-i480x25

Model Color Volt Watt Ampere Datasheet
  FLDL-i480x25-G/B/W 24 V 31.20 W 1.30 A FLDL-i300x24

FLDL-i74x27

Model Color Volt Watt Ampere Datasheet
  FLDL-i74x27-SR 12 V 6.48 W 0.54 A FLDL-i74x27
  FLDL-i74x27-SR24 24 V 6.48 W 0.27 A
  FLDL-i74x27-G/B/W 24 V 5.76 W 0.24 A
  FLDL-i74x27-IR 12 V 3.60 W 0.30 A
  FLDL-i74x27-IR24 24 V 3.60 W 0.15 A

FLDL-i150x27

Model Color Volt Watt Ampere Datasheet
  FLDL-i150x27-SR 12 V 12.96 W 1.08 A FLDL-i150X27
  FLDL-i150x27-SR24 24 V 12.96 W 0.54 A
  FLDL-i150x27-G/B/W 24 V 11.52 W 0.48 A
  FLDL-i150x27-IR 12 V 7.20 W 0.60 A
  FLDL-i150x27-IR24 24 V 7.20 W 0.30 A

FLDL-i200x27

Model Color Volt Watt Ampere Datasheet
  FLDL-i200X27-SR24 SR24 24 V 13.68 W 0.57 A FLDL-i200x27
  FLDL-i200x27-G/B/W 24 V 17.28 W 0.72 A
  FLDL-i200x27-IR 12 V 10.80 W 0.90 A
  FLDL-i200x27-IR24 24 V 7.80 W 0.33 A

FLDL-i300x30

Model Color Volt Watt Ampere Datasheet
  FLDL-i300x30-SR24 SR24 24 V 25.92 W 1.08 A FLDL-i300x30
  FLDL-i300x30-G/B/W 24 V 25.92 W 1.08 A
  FLDL-i300x30-IR 12 V 16.20 W 1.35 A

FLDL-i300x30-5

Model Color Volt Watt Ampere Datasheet
  FLDL-i300x30-SR24-5 SR24 24 V 11.52 W 0.48 A FLDL-i300x30-5
  FLDL-i300x30-W5 24 V 17.28 W 0.72 A

FLDL-i400x30

Model Color Volt Watt Ampere Datasheet
  FLDL-i400x30-SR 12 V 34.56 W 2.88 A FLDL-i400x30
  FLDL-i400x30-SR24 24 V 34.56 W 1.44 A
  FLDL-i400x30-G/B/W 24 V 31.68 W 1.32 A
  FLDL-i400x30-IR 12 V 19.80 W 1.65 A
  FLDL-i400x30-IR24 24 V 19.20 W 0.80 A

FLDL-i240x35

Model Color Volt Watt Ampere Datasheet
  FLDL-i240x35-G/B/W 24 V 23.04 W 0.96 A FLDL-i240x35
  FLDL-i240x35-IR 12 V 14.40 W 1.20 A

FLDL-i300x35

Model Color Volt Watt Ampere Datasheet
  FLDL-i300x35-SR24 23 V 30.24 W 1.26 A FLDL-i300x35

FLDL-i300x36-5

Model Color Volt Watt Ampere Datasheet
  FLDL-i300x36-SR24-5 SR24 24 V 15.12 W 0.63 A FLDL-i300x36-5
  FLDL-i300x36-W5 24 V 25.20 W 1.05 A

FLDL-i120x40

Model Color Volt Watt Ampere Datasheet
  FLDL-i120x40-SR 12 V 20.16 W 1.68 A FLDL-i120x40
  FLDL-i120x40-SR24 R24 24 V 11.52 W 0.48 A
  FLDL-i120x40-G/B/W 24 V 19.20 W 0.80 A
  FLDL-i120x40-IR 12 V 12.00 W 1.00 A
  FLDL-i120x40-IR24 24 V 12.00 W 0.50 A

FLDL-i180x40

Model Color Volt Watt Ampere Datasheet
  FLDL-i180x40-SR24 R24 24 V 13.44 W 0.56 A FLDL-i180x40
  FLDL-i180x40-G/B/W 24 V 19.20 W 0.80 A
  FLDL-i180x40-IR 12 V 12.00 W 1.00 A
  FLDL-i180x40-IR24 24 V 12.00 W 0.50 A

FLDL-i130x50

Model Color Volt Watt Ampere Datasheet
  FLDL-i130x50-SR24 24 V 20.16 W 0.84 A FLDL-i130x50
  FLDL-i130x50-G/B/W 24 V 19.20 W 0.80 A

FLDL-i200x50-5

Model Color Volt Watt Ampere Datasheet
  FLDL-i200x50-R24-5 24 V 15.12 W 0.63 A
  FLDL-i200x50-G/B/W-5 24 V 21.60 W 0.90 A

FLDL-i260x50-5

Model Color Volt Watt Ampere Datasheet
  FLDL-i260x50-W5 24 V 28.08 W 1.17 A FLDL-i260x50-5

FLDL-i600x50-5

Model Color Volt Watt Ampere Datasheet
sr24FLDL-i600x50-W5 24 V 51.84 W 2.16 A FLDL-i600x50-5
  FLDL-i600x50-IR24-5 24 V 16.32 W 0.68 A

FLDL-i240x70

Model Color Volt Watt Ampere Datasheet
  FLDL-i240x70-SR24 24 V 46.80 W 1.95 A FLDL-i240x70

FLDL-Si60x25

Model Color Volt Watt Ampere Datasheet
  FLDL-Si60x25-RGB 24 V 3.84 W 0.16 A FLDL-Si60x25

FLDL-Si150x27

Model Color Volt Watt Ampere Datasheet
  FLDL-Si150x27-R24 24 V 10.56 W 0.44 A FLDL-Si150X27

FLDL-Si120x28

Model Color Volt Watt Ampere Datasheet
  FLDL-Si120x28-RGB 24 V 7.68 W 0.32 A FLDL-Si120x28
