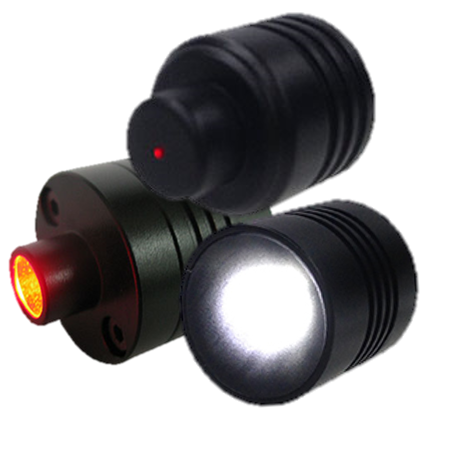

Product Description:

The FHLV series is a high powered spot lights that are compatible with machine micro lenses. Collimated optics and light guides to produce maximum illumination which enables long working distance. The FHLV is small and light weight for easy handling. Stable illumination when used with a dedicated constant current power source. UV models are available for this series.


Illumination Structure:
Specially designed condenser lens and rod lens are combined to emit highly uniform, high luminosity condensed light.






Major Applications:

- Coaxial episcopic lighting (for wafers and crystal glass substrate alignment).
- Long distance spot lighting.
- Can be mounted on movable modules.


Additional Information:

- Aluminium or stainless steel housing.
- JST connector as standard (M8 or M12 available).
- IP 30 as standard, higher IPs are available as requested.






FHLV-Si20

Model Color Volt Watt Ampere Datasheet
  FHLV-Si20-R 12 V 0.77 W 0.35 A FHLV-Si20
  FHLV-Si20-G/B/W W 12 V 1.05 W 0.35 A

FHLV-Si27N2

Model Color Volt Watt Ampere Datasheet
  FHLV-Si27N2-R 12 V 0.77 W 0.35 A FHLV-Si27N2
  FHLV-Si27N2-R24 24 V 0.77 W 0.35 A
  FHLV-Si27N2-G12/B12/W12 W 12 V 1.05 W 0.35 A

FHLV-Si27N3

Model Color Volt Watt Ampere Datasheet
  FHLV-Si27N3-G12/B12/W12 W 12 V 1.05 W 0.35 A FHLV-Si27N3

FHLV-Si27N3(XML)

Model Color Volt Watt Ampere Datasheet
  FHLV-Si27N3-G12/B12/W12(XML) W 12 V 1.05 W 0.35 A FHLV-Si27N3(XML)
