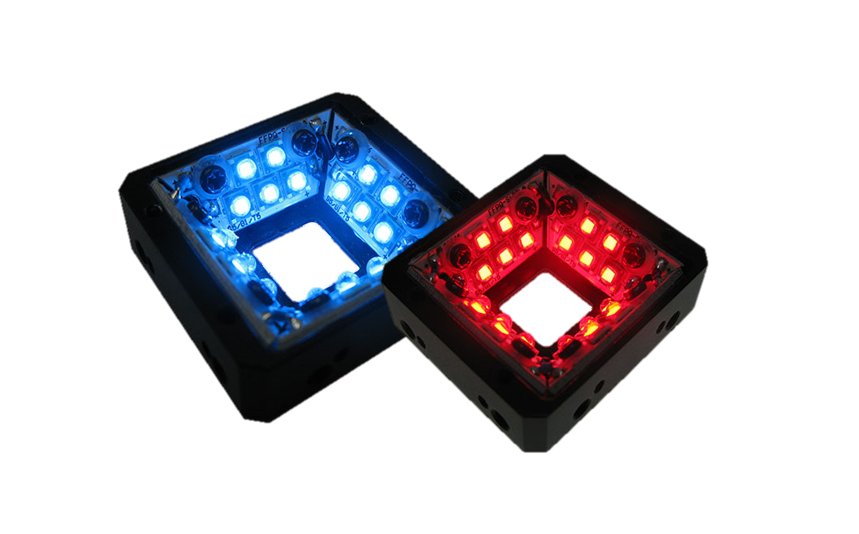

Product Description:

Low angle, diffuse illumination enables characters and defects to be uniformly illuminated with no LED glare. Soft, even and diffused lighting on shiny objects. Best for preventing the halo effect. The shadowless, low angle square type is perfect for square shaped objects.


Illumination Structure:
The object is illuminated from a low angle by uniform diffuse light through the light conduction plate.







Major Applications:

- Inspection for ink or laser marking.
- Surface cosmetic inspection for molded packages.
- Best suited for laser mark on aluminium 2D matrix inspection.


Additional Information:

- Aluminium or stainless steel housing.
- JST connector as standard (M8 or M12 available).
- IP 30 as standard, higher IPs are available as requested.






FFPQ-Si31x35

Model Color Volt Watt Ampere Datasheet
  FFPQ-Si31x35-R 12 V 1.44 W 0.12 A FFPQ-Si31x35
  FFPQ-Si31x35-R24 24 V 1.92 W 0.08 A
  FFPQ-Si31x35-G12/B12/W12 B12W12 12 V 0.96 W 0.08 A
  FFPQ-Si31x35-G/B/W W 24 V 0.96 W 0.04 A

FFPQ-Si32

Model Color Volt Watt Ampere Datasheet
  FFPQ-Si32-R 12 V 1.92 W 0.16 A FFPQ-Si32
  FFPQ-Si32-R24 24 V 1.92 W 0.08 A
  FFPQ-Si32-G/B/W W 24 V 1.92 W 0.08 A
  FFPQ-Si32-IR24 24 V 0.60 W 0.03 A

FFPQ-Si50

Model Color Volt Watt Ampere Datasheet
  FFPQ-Si50-R 12 V 3.84 W 0.32 A FFPQ-Si50
  FFPQ-Si50-R24 24 V 3.84 W 0.16 A
  FFPQ-Si50-G/B/W W 24 V 2.88 W 0.12 A
  FFPQ-Si50-IR24 24 V 1.20 W 0.05 A

FFPQ-Si75

Model Color Volt Watt Ampere Datasheet
  FFPQ-Si75-R 12 V 5.76 W 0.48 A FFPQ-Si75
  FFPQ-Si75-R24 24 V 5.76 W 0.24 A
  FFPQ-Si75-G/B/W W 24 V 3.84 W 0.16 A
  FFPQ-Si75-IR 12 V 2.40 W 0.20 A
  FFPQ-Si75-IR24 24 V 2.40 W 0.10 A

FFPQ-Si80x50

Model Color Volt Watt Ampere Datasheet
  FFPQ-Si80x50-G12/B12/W12 B12W12 12 V 2.64 W 0.22 A FFPQ-Si80x50
  FFPQ-Si80x50-G/B/W W 24 V 2.88 W 0.12 A

FFPQ-Si100

Model Color Volt Watt Ampere Datasheet
  FFPQ-Si100-R 12 V 7.68 W 0.64 A FFPQ-Si100
  FFPQ-Si100-R24 24 V 7.68 W 0.32 A
  FFPQ-Si100-G/B/W W 24 V 5.76 W 0.24 A
  FFPQ-Si100-IR 12 V 3.60 W 0.30 A
  FFPQ-Si100-IR24 24 V 3.60 W 0.15 A

FFPQ-Si120

Model Color Volt Watt Ampere Datasheet
  FFPQ-Si120-R 12 V 9.60 W 0.80 A FFPQ-Si120
  FFPQ-Si120-R24 24 V 9.60 W 0.40 A
  FFPQ-Si120-G/B/W W 24 V 7.68 W 0.32 A
  FFPQ-Si120-IR 12 V 4.80 W 0.40 A
  FFPQ-Si120-IR24 24 V 4.20 W 0.18 A

FFPQ-Si130

Model Color Volt Watt Ampere Datasheet
  FFPQ-Si130-R 12 V 9.60 W 0.80 A FFPQ-Si130
  FFPQ-Si130-R24 24 V 9.60 W 0.40 A
  FFPQ-Si130-G/B/W W 24 V 7.68 W 0.32 A
  FFPQ-Si130-IR 12 V 4.80 W 0.40 A
  FFPQ-Si130-IR24 24 V 4.20 W 0.18 A

FFPQ-Si150

Model Color Volt Watt Ampere Datasheet
  FFPQ-Si150-R 12 V 11.52 W 0.96 A FFPQ-Si150
  FFPQ-Si150-R24 24 V 11.52 W 0.48 A
  FFPQ-Si150-G/B/W W 24 V 9.60 W 0.40 A
  FFPQ-Si150-IR 12 V 6.00 W 0.50 A
  FFPQ-Si150-IR24 24 V 4.80 W 0.20 A

FFPQ-Si31x35-4

Model Color Volt Watt Ampere Datasheet
  FFPQ-Si31x35-4-R r 12 V 1.92 W 0.16 A FFPQ-Si31x35-4

FFPQ-Si50-4

Model Color Volt Watt Ampere Datasheet
  FFPQ-Si50-4-R24 24 V 3.84 W 0.16 A FFPQ-Si50-4

FFPQ-Si75-4

Model Color Volt Watt Ampere Datasheet
  FFPQ-Si75-4-G/B/W W 24 V 3.84 W 0.16 A FFPQ-Si75-4

FFPQ-Si100-4

Model Color Volt Watt Ampere Datasheet
  FFPQ-Si100-4-G/B/W W 24 V 5.76 W 0.24 A FFPQ-Si100-4

FFPQ-Si120-4

Model Color Volt Watt Ampere Datasheet
  FFPQ-Si120-4-R r 12 V 9.60 W 0.80 A FFPQ-Si120-4
  FFPQ-Si120-4-R24 24 V 9.60 W 0.40 A
  FFPQ-Si120-4-G/B/W W 24 V 7.68 W 0.32 A
  FFPQ-Si120-4-IR ir 12 V 4.80 W 0.40 A
  FFPQ-Si120-4-IR24 ir 24 V 4.20 W 0.18 A
